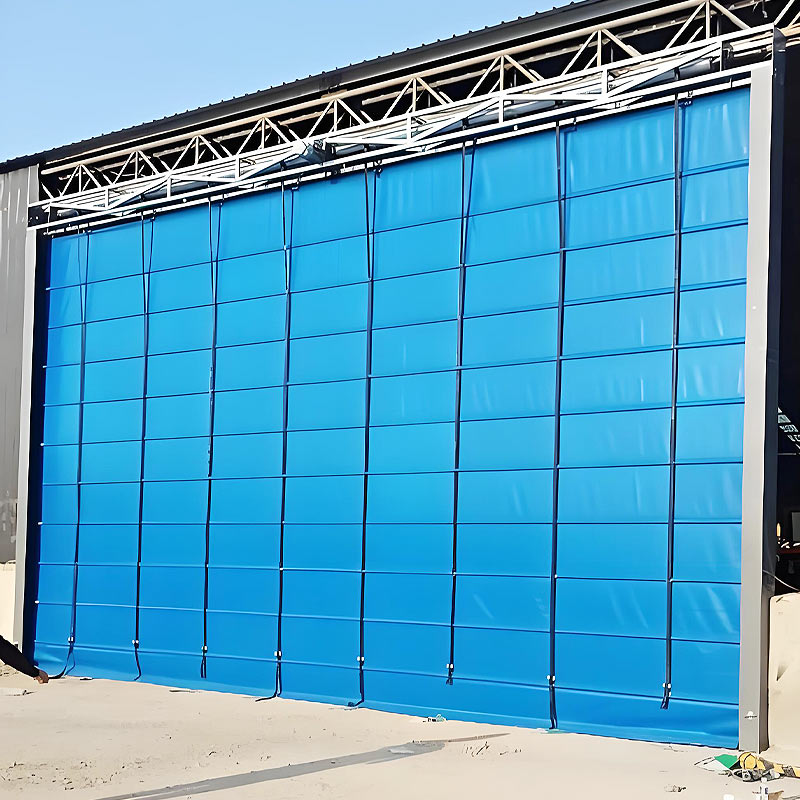

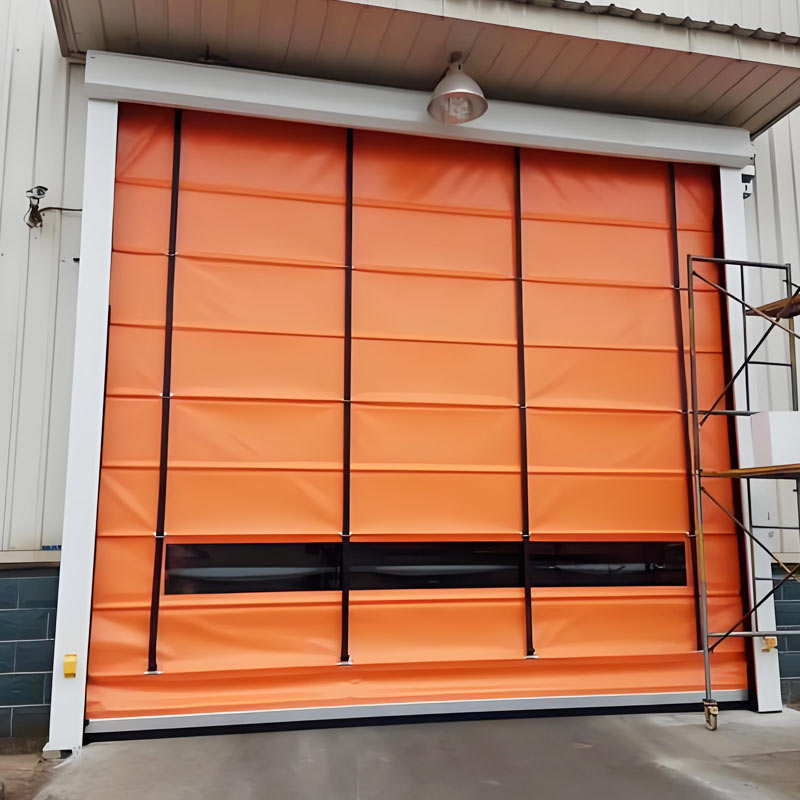

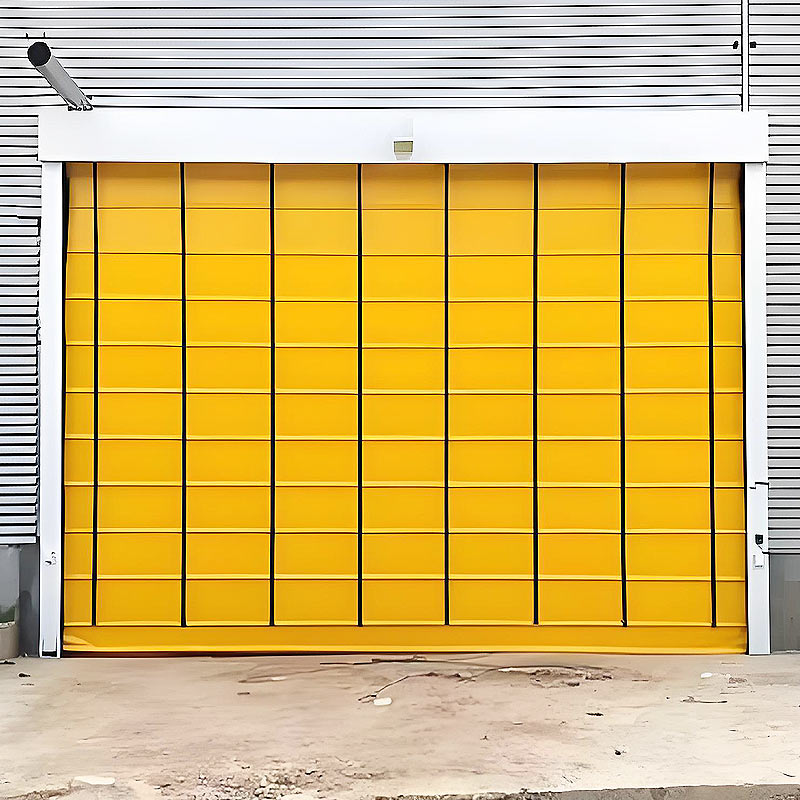

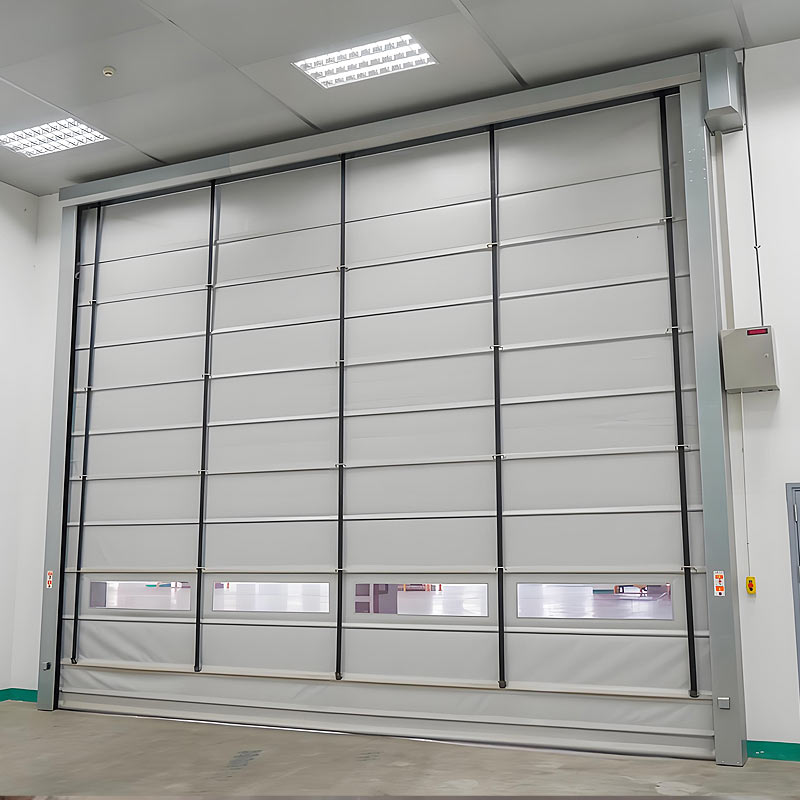

Pvc Folding Fast Stacking Door
The Pvc Folding Fast Stacking Door adopts a folding lifting method and multiple built-in horizontal wind‑resistant levers. Wind pressure is evenly distributed across the entire door curtain, resulting in significantly higher wind load resistance than ordinary rolling high‑speed doors. It is especially suitable for logistics passages and large openings.
The plug‑in door curtain design allows for easy disassembly and convenient maintenance.
The door is widely used in food, chemical, electronics, supermarkets, cold storage, logistics, warehousing, and other applications. It meets the requirements of high‑performance logistics and cleanroom environments, saves energy, closes automatically at high speed, improves work efficiency, and creates a better working environment.
Door Opening Methods:
Manual button, ground loop induction, interlocking, infrared protection, radar induction, remote control.
Door Curtain:
The segmented door curtain is made of high‑density polyester fiber (thickness: 1.0 mm). The transparent window is made of fully transparent PVC soft sheet (thickness: 1.5 mm).
Frame Structure:
Formed from high‑quality anti‑corrosion cold‑rolled steel plate (mm thickness) through multiple processes. Finished with silver‑gray (default, other colors available) spray and baking paint – elegant, sturdy, and durable.
Drive System:
Motor power: 0.55–1.5 kW; Voltage: 220V/380V.
Control System:
IP55 enclosure, compatible with various common protective devices. Overall control uses PLC digital programming to ensure safe passage of personnel, vehicles, and goods. Manual operation with a manual crank for power‑off operation – easy to open or close.
Operating Speed:
0.6 m/s.
Manual Quick‑Open Lever (optional):
Manual quick‑opening lever, plus manual crank for power outages
