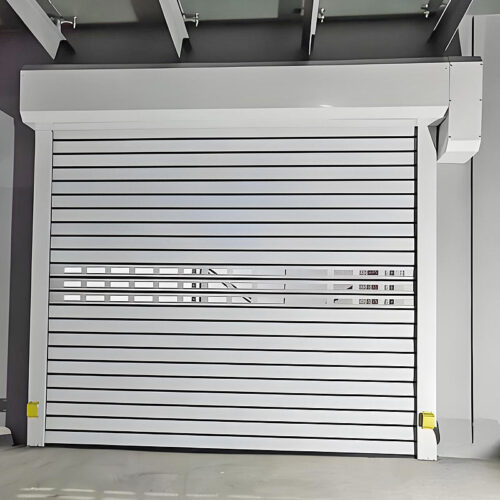

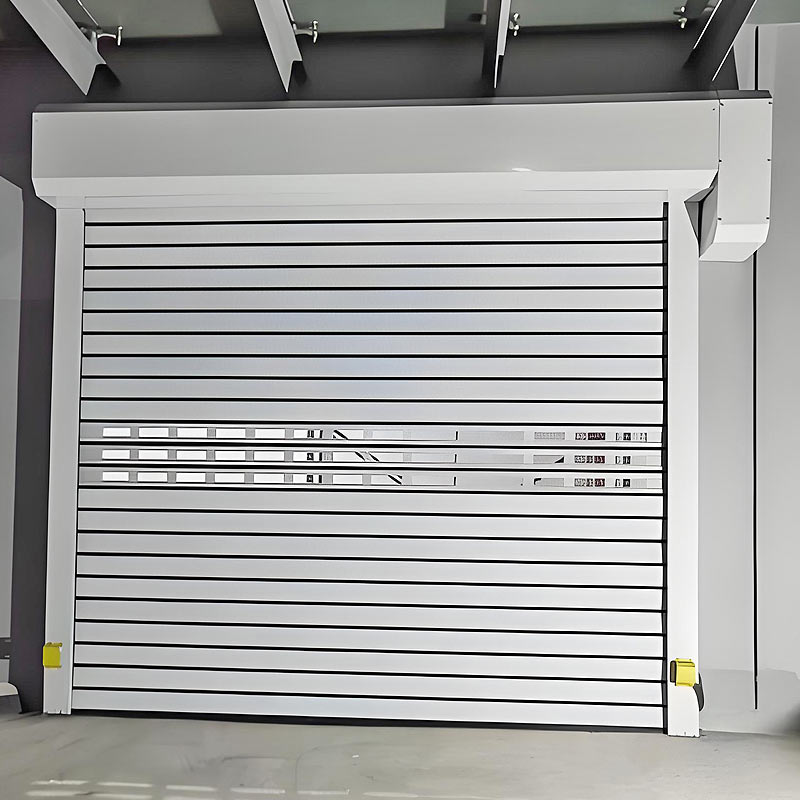

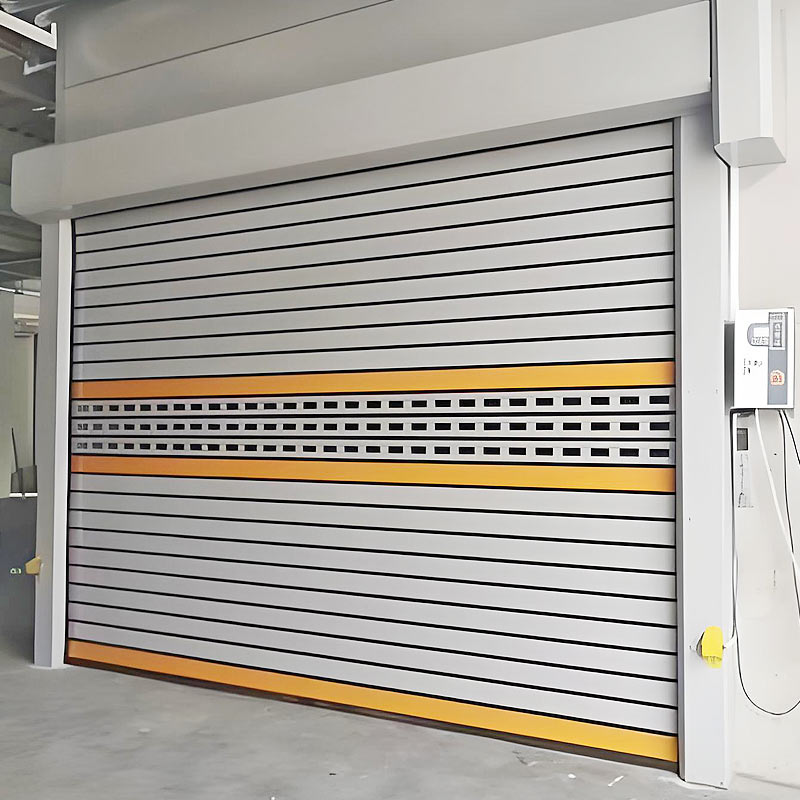

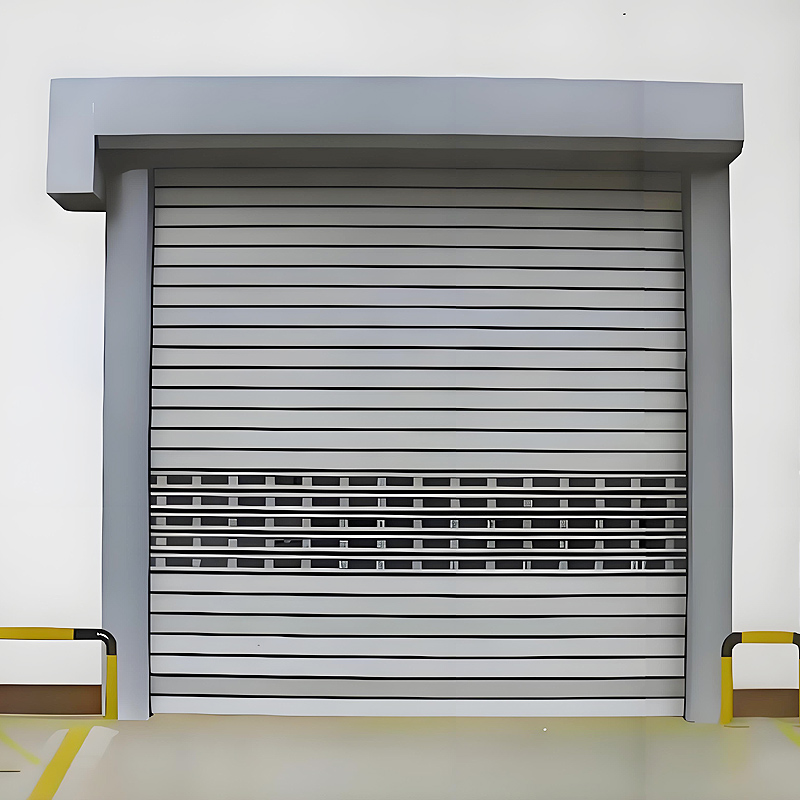

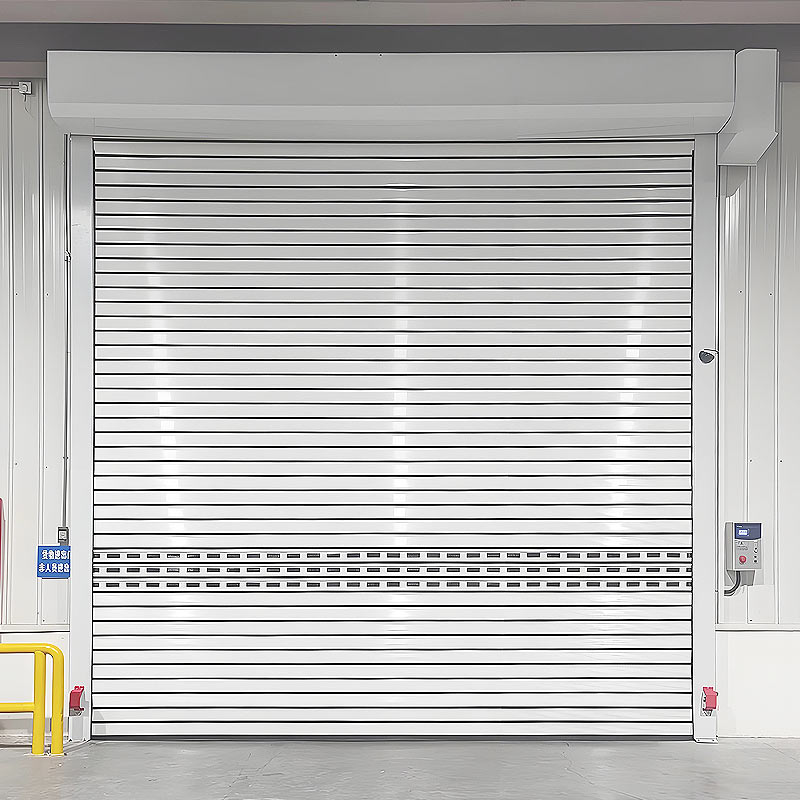

ROLLER HARD FAST DOOR
Rigid High Speed Door
The rigid high speed door is a new type of metal industrial door that integrates speed, energy efficiency, sealing, high performance, wind resistance, and environmental protection.
With a maximum opening speed of up to 1 m/s, it is ideal for logistics passages that require frequent and high speed operation.
The door features excellent sealing performance to reduce air exchange.
The door panels are made of high grade aluminum alloy with a thickness of 20 mm, offering a more refined design and a compact footprint.
This makes the door particularly suitable for openings with limited space and small temperature differences between inside and outside.
The product is characterized by high reliability, practicality, ease of operation, and quick repair capability.
The drive and control system employs a stable, energy efficient, and precise system to ensure reliable operation, with a proven track record of over 270,000 trouble free cycles per year.
Key Components:
Servo motor, servo controller, radar sensor, absolute encoder, infrared protection.
Opening Methods:
Manual button, ground loop induction, interlocking, infrared protection, radar induction, remote control.
